Vacuum Chamber With Pump- Vacuum Degassing Machine

Custom Vacuum Components

Custom vacuum chamber lids designed to meet your chamber dimensions, material requirements, sealing needs, and operating conditions. Choose from transparent acrylic vacuum chamber, stainless steel vacuum chamber, and other configurations for laboratory and industrial vacuum applications.

Vacuum Chamber With Pump

Model: ACR Series
Chamber Size：Customized
Sealing Material: Silicone, EPDM, Fluoroelastomer optional
Vacuum Degree: -0.1Mpa. Or positive pressure can be customized
Vacuum valves and pressure gauges：Customized

Vacuum Chamber With Pump- A complete degassing solution

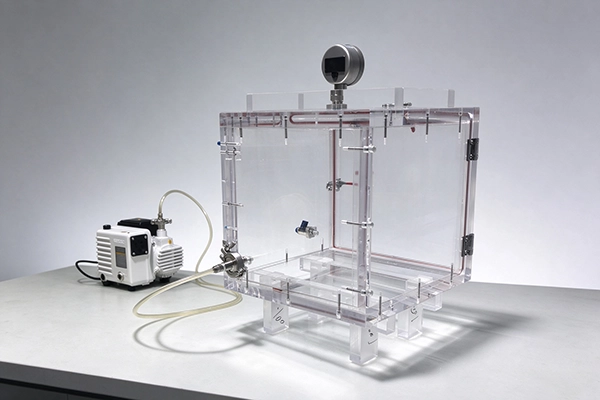

Custom transparent acrylic vacuum chamber matched with rotary vane vacuum pump. Visible observation window, good sealing, widely used for epoxy resin degassing, laboratory negative pressure test, material defoaming and small glove box test. Custom internal size, thickness, ports and gauge interface available.

Optional:

Model	Material	Chamber Size	Side Door Size	Thickness	Vacuum degree
ACR250	Acrylic	250250250mm	250*250mm	20mm	-0.1MPA
ACR300	Acrylic	300300300mm	300*300mm	30mm	-0.1MPA
ACR400	Acrylic	400400400mm	400*400mm	30mm	-0.1MPA
ACR500	Acrylic	500500500mm	500*500mm	40mm	-0.1MPA
ACR600	Acrylic	600600600mm	600*600mm	50mm	-0.1MPA

Fully Transparent Acrylic

Clear PMMA material, whole process visible, convenient to observe bubble elimination and material state changes inside chamber.

Reliable Sealing Structure

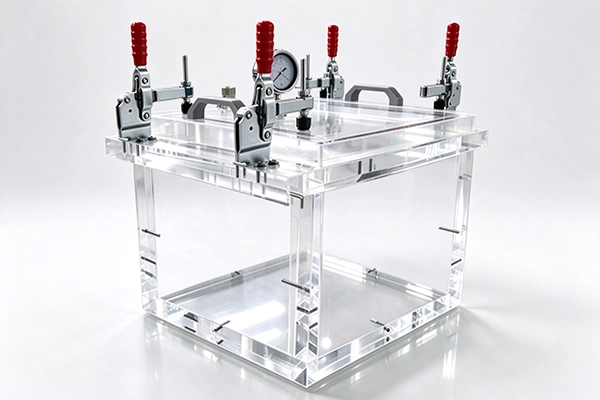

Silicone rubber sealing strip + quick toggle clamps, stable negative pressure, can reach -0.1Mpa vacuum degree.

Complete Pump Kit

Equipped with rotary vane vacuum pump, digital vacuum gauge, KF25 valve, air inlet port and connecting hose, ready to use out of box.

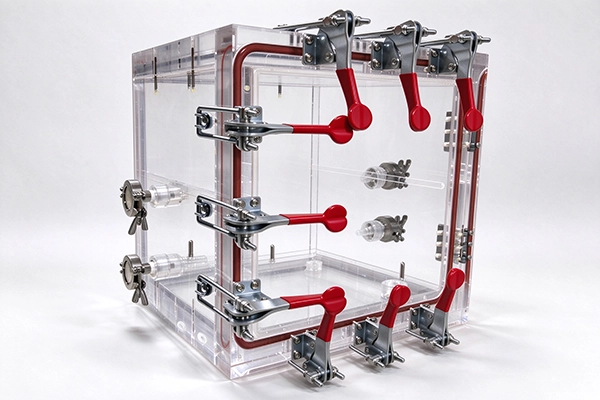

Acrylic Vacuum Chamber With Positive Function

Temperature & Humidity Control Modules for Glove Boxes

Vacuum Chamber Types

Different vacuum chamber designs serve different chamber structures and process requirements. Choose a configuration based on your application.

Acrylic Vacuum Chamber

A transparent chamber that allows visual observation of materials, samples, and processes inside the chamber. Suitable for compatible low-pressure applications when properly engineered for the intended dimensions and pressure differential.

Stainless Steel Vacuum Chamber

An opaque metal for applications requiring a rigid structure, durable mounting surfaces, or integrated ports and fittings. Stainless steel grade and thickness can be selected according to the application.

Custom Vacuum Chamber

A made-to-order cover with custom shapes, cutouts, mounting holes, handles, ports, or other structural features to suit existing equipment and specialized vacuum systems.

Designed Around Your Operation

Every vacuum chamber should be designed for its actual operating conditions. CHENDUN can review drawings or reference samples to help define the appropriate structure, dimensions, and sealing arrangement.

√ Custom round, rectangular, or other specified shapes

√ Optional vacuum ports and feedthrough openings

√ Gasket grooves and sealing-interface customization

√ Hole patterns and mounting features to match your operation

√ Material and thickness selection based on design requirements

Vacuum Chamber System Applications

Custom vacuum chamber with pump can be incorporated into laboratory equipment, industrial processing systems, and specialized testing chambers, subject to material compatibility and engineering validation.

Epoxy, silicone, PU resin vacuum degassing & bubble removing

Laboratory negative pressure simulation test

Material air tightness inspection

Small scale vacuum drying experiment

Mold casting and crafts making

Custom acrylic glove box pre-experiment

Vacuum Chamber System Specifications

The following table lists the main parameters available for customization. Final specifications depend on the approved design.

Item	Parameter
Chamber Material	Transparent Acrylic (PMMA) or customized
Standard Vacuum Level	-0.1 MPa (760 Torr) or customized
Gauge	Digital Vacuum Gauge, KF25 interface or customized
Seal Material	Silicone O-ring / Silicone gasket or customized
Pump Type	Single-stage rotary vane vacuum pump or customized
Customization	Internal size, plate thickness, number of ports, glove port, flange interface
Application	Degassing, defoaming, negative pressure experiment, sample test

How to Customize Your Vacuum Chamber With Pump System

Provide a few key details so we can review your requirements and prepare a suitable quotation.

1. Share Dimensions

Send a drawing, sketch, existing lid measurements, or chamber dimensions, including the sealing surface and mounting holes.

2. Confirm Conditions

Tell us the required vacuum level, working temperature, material exposure, opening method, and any ports or accessories needed.

3. Review & Quote

We review the proposed configuration, clarify technical details, and provide a quotation based on the confirmed requirements.

Vacuum Chamber Lid FAQ

Q1: What is the maximum vacuum this acrylic vacuum chamber can reach?

A1: Our standard set can reach -0.1 MPa (near full vacuum). The ultimate vacuum also depends on pump performance, sealing condition and chamber leakage rate. For Acrylic Vacuum Chamber can reach 100pa. Stainless Steel Vacuum Chamber with pump currently we can do 10pa max.

Q2: Can I customize the size, ports and thickness of the vacuum chamber?

A2: Yes. We fully support customization. You can specify internal dimension, acrylic plate thickness, KF/G thread ports, glove ports, extra gauge ports and viewing windows.

Q3: Is the vacuum pump included in the package?

A3: Yes, this CD series is sold as a complete kit: acrylic chamber, digital vacuum gauge, silicone seal, valves, hose and matching rotary vane vacuum pump, ready for use.

Q5: How long can the chamber hold vacuum after pumping?

A5: For well-sealed standard chambers, vacuum can be maintained for several hours. Retention time varies based on port quantity, gasket condition and connection points.
