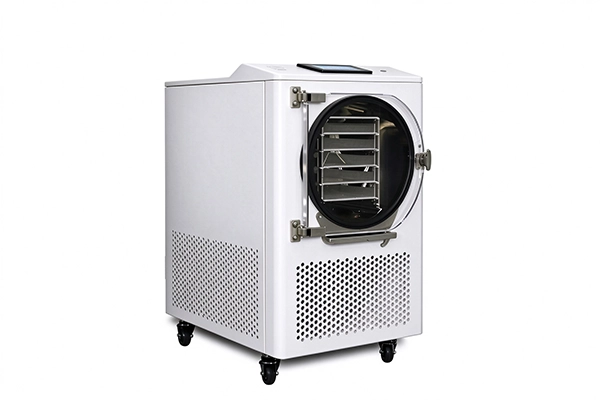

Small Freeze Dryer for Food

Title: Durian Freeze‑Drying

Using advanced physical sublimation technology under high vacuum at ‑40℃, 100% of durian’s natural color, fragrance and active nutrients can be preserved. The final honeycomb‑structured crispy product is a premium healthy freeze‑dried snack.

Kiwi Fruit Slice Freeze‑Drying

Low‑temperature sublimation locks natural chlorophyll and nutrition of kiwi slices. Produce zero‑additive, non‑shrivel freeze‑dried kiwi chips with excellent appearance for food brands.

Lemon Slice Freeze‑Drying

Retain lemon’s natural colour, active vitamin C and peel aroma. Effectively prevent browning. The finished slices can quickly re‑hydrate after soaking in water, with crisp texture and no additives.

Apple Slice Freeze‑Drying

Freeze‑dry apple slices to lock their natural colour and sweet‑sour flavour. Vacuum low‑temperature processing avoids oxidation browning. Dried slices can restore fresh‑fruit taste rapidly.

Kumquat Freeze‑Drying

Preserve the emerald‑green colour and sour‑sweet taste of kumquats. High‑vacuum dehydration prevents shrinkage, retaining vitamins and fresh‑fruit flavour.

Fig Freeze‑Drying

Low‑temperature vacuum dehydration keeps figs’ unique skin‑red and flesh‑red colour. The freeze‑dried figs are crispy, ready‑to‑eat, and maintain the original fruit nutrition.

Model	CDFD‑1F	CDFD‑3F	CDFD‑4F	CDFD‑6F
Freeze‑drying area (㎡)	0.1	0	0.43	0.67
Condenser temperature(℃)	≤‑60(no load)	≤‑60℃ (no load)	≤‑60℃ (no load)	≤‑60℃ (no load)
Ultimate vacuum(Pa)	≤5Pa (no load)	≤10Pa (no load)	≤5Pa (no load)	≤5Pa (no load)
Qty of shelf	3+1	4+1	5+1	5+1
Tray size(mm)	280×140	540×200	380×225	600×225
Material capacity	1L (liquid)	4L (liquid)	4L (liquid)	6L (liquid)
Power supply	AC220V, 50Hz	AC220V, 50Hz	AC220V, 50Hz	AC220V, 50Hz
Power(kW)	1	2	1.5	2.5
Dimension(mm)	575×370×565	700×510×670	710×520×850	915×550×950
Weight(Kg)	40	80	80	120

Model

CDFD‑1F

CDFD‑3F

CDFD‑4F

CDFD‑6F

Freeze‑drying area (㎡)

0.1

0.43

0.67

Condenser temperature(℃)

≤‑60(no load)

≤‑60℃ (no load)

Ultimate vacuum(Pa)

≤5Pa (no load)

≤10Pa (no load)

≤5Pa (no load)

Qty of shelf

3+1

4+1

5+1

Tray size(mm)

280×140

540×200

380×225

600×225

Material capacity

1L (liquid)

4L (liquid)

6L (liquid)

Power supply

AC220V, 50Hz

Power(kW)

1.5

2.5

Dimension(mm)

575×370×565

700×510×670

710×520×850

915×550×950

Weight(Kg)

120
